Battery-free UV visualization

Make invisible UV visible.

The ComPhysics CP-UV01 converts suitable incoming UVA/UVB into a visible green response. Use it for immediate visual indication and for relative comparisons made under similar test conditions.

No batteryPassive optical operation

Smartphone readyAdapter included

Complete kitBody, adapter, light shield

See the CP-UV01 in action

Each video has standard playback controls. Select play to view the demonstration.

Compare relative UV transmission through sunglasses.

Compare the visible UV response from different light sources.

Observe relative UV response through different windows.

Attach the CP-UV01 to a smartphone with the included CP-UV01-SA.

Simple setup

Use it by eye or with your smartphone

Point the CP-UV01 toward the light or transmitted UV source you want to compare.
Use the detachable light shield when ambient light makes the green response difficult to see.
For recording, attach the CP-UV01-SA, align it with the camera, and use the free ComPhysics Green UV app.

Relative comparison

Explore everyday UV transmission

Windows and automotive glass
Sunglasses, lenses, and UV-blocking films
Fabrics and protective materials
Different light sources and lighting conditions

For meaningful comparisons, keep the wavelength, distance, angle, ambient light, camera, and app settings as consistent as possible.

Examples of CP-UV01 real-world applications

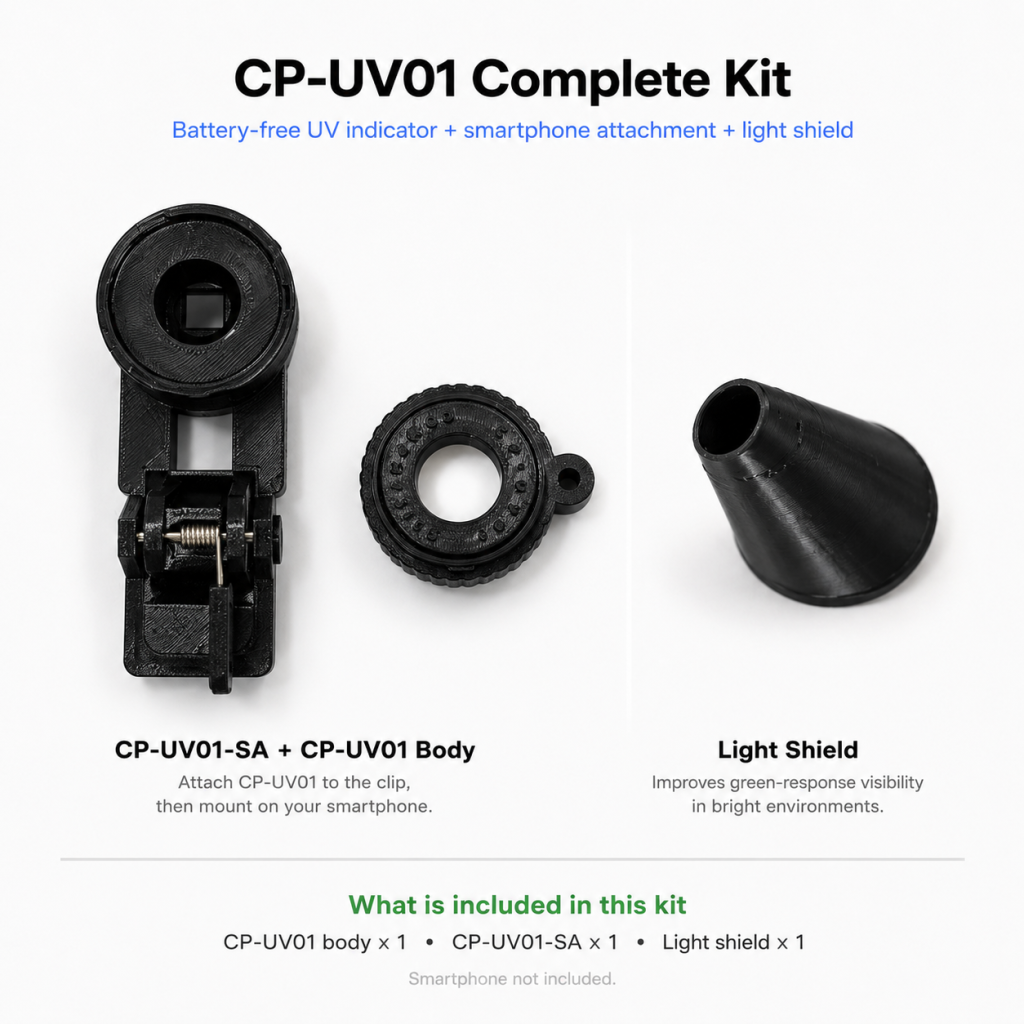

What is included

1 × CP-UV01 UV visualization device
1 × CP-UV01-SA smartphone adapter
1 × detachable light shield
Free ComPhysics Green UV app for iOS and Android (download separately)

Smartphone is not included.

Product documents

Download datasheet (PDF)Dimensional drawing (PDF)

Frequently asked questions

What does the CP-UV01 show?

It produces a visible green response when suitable ultraviolet input reaches its passive optical conversion structure. The response can be observed directly or recorded with a smartphone.

Does the CP-UV01 measure an absolute UV value?

No. It is a visual indicator for relative comparisons under similar conditions, not a calibrated radiometer and not a substitute for certified measurement equipment.

Does the CP-UV01 require a battery?

No battery or external power is required in the CP-UV01 itself. A smartphone is optional and is used only for recording or app-assisted comparison.

What is included in the Complete Kit?

One CP-UV01 body, one CP-UV01-SA smartphone adapter, and one detachable light shield. A smartphone is not included.

Store

ComPhysics CP-UV01 Complete UV Visualization Kit with Smartphone Adapter
